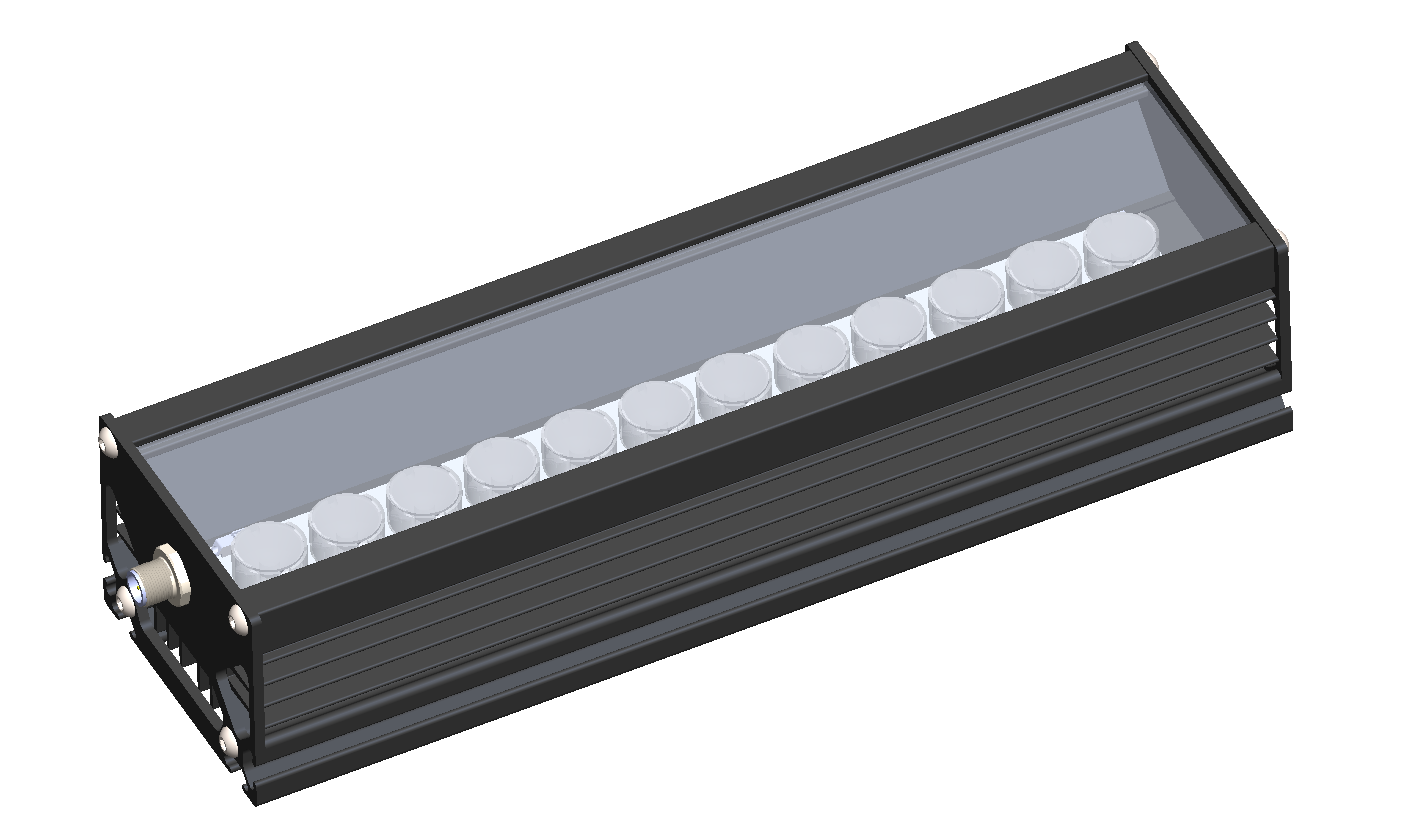

MLLT111.5 – 11.5″ Monster Series Linear Light with T-Slots

Features:

•External driver/controller and 4m cable included
•High speed Strobe Technology
•High Power LEDs
•DIN rail mount driver/controller (24 VDC)
•M12 connector for quick disconnect
•Available in 5 colors, Ultra-Violet, Infrared
•10 Year Warranty* – click here for info
•Long LED life – click here for info
Caution –
The supplied LDM driver must be used for both continuous or strobe operations! Do not connect the light directly to 24VDC! Operating the light without the supplied LDM driver will result in premature LED failure and will void the warranty.

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) lenses, diffusers, drivers or cable: Please select options from the tables below.

Example Part Number:
MLLT111.5-630/39/A/MCHF8

Base Part Number	Lens Type	Diffuser Type	Cable Type	Driver Type
MLLT111.5-630	39	SD	MCHF8	ALDM

11.5" T-Slot Linear Light Red LEDs with 39° lenses - Package includes light, ALDM 700, and 8 meter High Flex cable

Specify Lens type
Type	Description	List Price
12	LED Optics 12°	add $0 (STD)
16	LED Optics 16° Frosted	add $0
23	LED Optics 23° Frosted	add $0
30	LED Optics 30°	add $0
39	LED Optics 39° Frosted	add $0
50	LED Optics 50°	add $0
F	LED Optics Wide Angle	add $0
L	LED Optics Line	add $0
R	LED Reflector 90°	add $0

Specify Diffuser option
Type	Description	List Price
SD	Standard Diffuser	add $0 (STD)
CC	Clear Cover	add $0
TFD	Thin Film Diffuser	add $25
WD	White Diffuser	add $0
P	Polarizer	add $50

array(26) {
  [0]=>
  NULL
  [1]=>
  NULL
  [2]=>
  array(3) {
    [0]=>
    string(3) "MC4"
    [1]=>
    string(21) "Monster Cable 4 meter"
    [2]=>
    string(12) "add $0 (STD)"
  }
  [3]=>
  array(3) {
    [0]=>
    string(3) "MC8"
    [1]=>
    string(21) "Monster Cable 8 meter"
    [2]=>
    string(7) "add $40"
  }
  [4]=>
  array(3) {
    [0]=>
    string(4) "MC15"
    [1]=>
    string(22) "Monster Cable 15 meter"
    [2]=>
    string(7) "add $60"
  }
  [5]=>
  array(3) {
    [0]=>
    string(4) "MC30"
    [1]=>
    string(22) "Monster Cable 30 meter"
    [2]=>
    string(8) "add $195"
  }
  [6]=>
  array(3) {
    [0]=>
    string(5) "MCHF4"
    [1]=>
    string(31) "Monster High Flex Cable 4 meter"
    [2]=>
    string(7) "add $75"
  }
  [7]=>
  array(3) {
    [0]=>
    string(5) "MCHF8"
    [1]=>
    string(31) "Monster High Flex Cable 8 meter"
    [2]=>
    string(8) "add $100"
  }
  [8]=>
  array(3) {
    [0]=>
    string(6) "MCHF15"
    [1]=>
    string(32) "Monster High Flex Cable 15 meter"
    [2]=>
    string(8) "add $200"
  }
  [9]=>
  array(3) {
    [0]=>
    string(6) "MCHF30"
    [1]=>
    string(32) "Monster High Flex Cable 30 meter"
    [2]=>
    string(8) "add $380"
  }
  [10]=>
  NULL
  [11]=>
  NULL
  [12]=>
  NULL
  [13]=>
  NULL
  [14]=>
  NULL
  [15]=>
  NULL
  [16]=>
  NULL
  [17]=>
  NULL
  [18]=>
  NULL
  [19]=>
  NULL
  [20]=>
  NULL
  [21]=>
  NULL
  [22]=>
  NULL
  [23]=>
  NULL
  [24]=>
  NULL
  [25]=>
  NULL
}

Specify Cable option
Type	Description	List Price
MC4	Monster Cable 4 meter	add $0 (STD)
MC8	Monster Cable 8 meter	add $40
MC15	Monster Cable 15 meter	add $60
MC30	Monster Cable 30 meter	add $195
MCHF4	Monster High Flex Cable 4 meter	add $75
MCHF8	Monster High Flex Cable 8 meter	add $100
MCHF15	Monster High Flex Cable 15 meter	add $200
MCHF30	Monster High Flex Cable 30 meter	add $380

array(15) {
  [0]=>
  NULL
  [1]=>
  NULL
  [2]=>
  NULL
  [3]=>
  array(3) {
    [0]=>
    string(6) "LDM700"
    [1]=>
    string(6) "LDM700"
    [2]=>
    string(12) "add $0 (STD)"
  }
  [4]=>
  NULL
  [5]=>
  NULL
  [6]=>
  NULL
  [7]=>
  NULL
  [8]=>
  NULL
  [9]=>
  NULL
  [10]=>
  NULL
  [11]=>
  NULL
  [12]=>
  array(3) {
    [0]=>
    string(1) "A"
    [1]=>
    string(15) "ALDMxxxx driver"
    [2]=>
    string(7) "add $85"
  }
  [13]=>
  array(3) {
    [0]=>
    string(1) "V"
    [1]=>
    string(15) "VLDMxxxx driver"
    [2]=>
    string(7) "add $85"
  }
  [14]=>
  array(3) {
    [0]=>
    string(2) "RV"
    [1]=>
    string(16) "RVLDMxxxx driver"
    [2]=>
    string(8) "add $100"
  }
}

Specify Driver option
Type	Description	List Price
LDM700	LDM700	add $0 (STD)
A	ALDMxxxx driver	add $85
V	VLDMxxxx driver	add $85
RV	RVLDMxxxx driver	add $100

Specifications PDF

CAD Drawing PDF

Download 3D CAD
