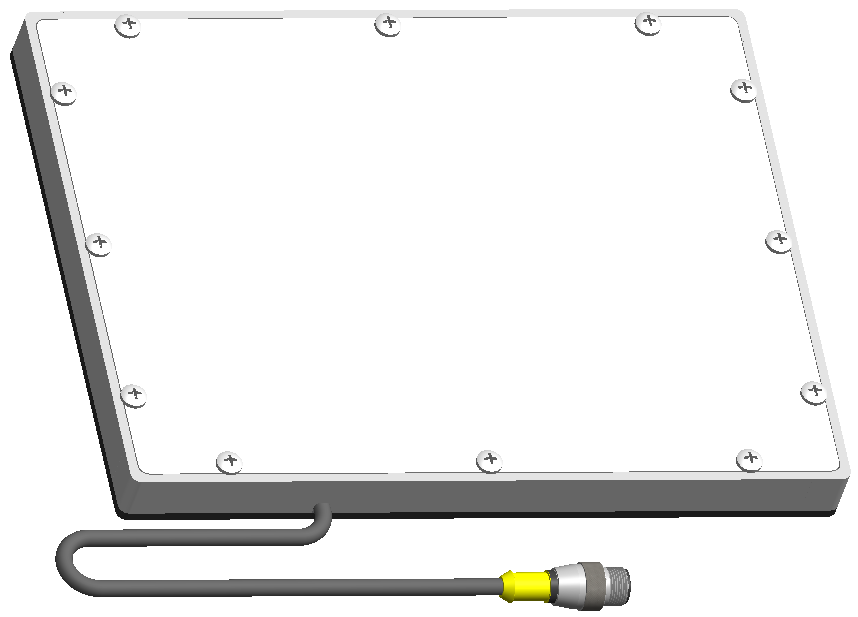

SBL68 – 6″ x 8″ Standard Back Light Series

Features:

• QC Conveyor direct fit & approved (/WDC option)
• No driver required
• High Speed Strobe Technology
• Low Profile
• Direct Connect 24VDC
• M12 connector for quick disconnect
• Available in 4 colors and Infrared
• 10 Year Warranty*

How to Order a Custom Configuration:

If you would prefer to order fixtures with optional (non-standard) diffusers or cable: Please select options from the tables below.

Example Part Number:
SBL68-WHI/P/SC8

Base Part Number	Lens Type	Diffuser Type	Cable Type	Driver Type
SBL68-WHI	N/A	/P	SC8	N/A

6" x 8" Standard Back Light with White LEDs, Polarizer, and 8 meter cable.

Specify Diffuser option
Type	Description	List Price
WD	White Diffuser	add $0 (STD)
WDC	White Diffuser for Conveyor	add $0
CC	Clear Cover	add $0
SD	Standard Diffuser	add $0
TFD	Thin Film Diffuser	add $25
P	Polarizer (400 - 700nm) Not compatible with /WDC	add $25

array(10) {
  [0]=>
  array(3) {
    [0]=>
    string(6) "CTL-.5"
    [1]=>
    string(40) "Camera to Light Cable 0.5 Meter (Cognex)"
    [2]=>
    string(7) "add $35"
  }
  [1]=>
  array(3) {
    [0]=>
    string(5) "CTL-1"
    [1]=>
    string(38) "Camera to Light Cable 1 Meter (Cognex)"
    [2]=>
    string(7) "add $35"
  }
  [2]=>
  array(3) {
    [0]=>
    string(5) "CTL-2"
    [1]=>
    string(38) "Camera to Light Cable 2 Meter (Cognex)"
    [2]=>
    string(7) "add $40"
  }
  [3]=>
  array(3) {
    [0]=>
    string(3) "SC4"
    [1]=>
    string(22) "Standard Cable 4 meter"
    [2]=>
    string(12) "add $0 (STD)"
  }
  [4]=>
  array(3) {
    [0]=>
    string(3) "SC8"
    [1]=>
    string(22) "Standard Cable 8 meter"
    [2]=>
    string(7) "add $50"
  }
  [5]=>
  array(3) {
    [0]=>
    string(4) "SC15"
    [1]=>
    string(23) "Standard Cable 15 meter"
    [2]=>
    string(7) "add $70"
  }
  [6]=>
  array(3) {
    [0]=>
    string(4) "SC30"
    [1]=>
    string(23) "Standard Cable 30 meter"
    [2]=>
    string(8) "add $110"
  }
  [7]=>
  array(3) {
    [0]=>
    string(5) "SCHF4"
    [1]=>
    string(32) "Standard High Flex Cable 4 meter"
    [2]=>
    string(7) "add $75"
  }
  [8]=>
  array(3) {
    [0]=>
    string(5) "SCHF8"
    [1]=>
    string(32) "Standard High Flex Cable 8 meter"
    [2]=>
    string(8) "add $100"
  }
  [9]=>
  array(3) {
    [0]=>
    string(6) "SCHF15"
    [1]=>
    string(33) "Standard High Flex Cable 15 meter"
    [2]=>
    string(8) "add $150"
  }
}

Specify Cable option
Type	Description	List Price
CTL-.5	Camera to Light Cable 0.5 Meter (Cognex)	add $35
CTL-1	Camera to Light Cable 1 Meter (Cognex)	add $35
CTL-2	Camera to Light Cable 2 Meter (Cognex)	add $40
SC4	Standard Cable 4 meter	add $0 (STD)
SC8	Standard Cable 8 meter	add $50
SC15	Standard Cable 15 meter	add $70
SC30	Standard Cable 30 meter	add $110
SCHF4	Standard High Flex Cable 4 meter	add $75
SCHF8	Standard High Flex Cable 8 meter	add $100
SCHF15	Standard High Flex Cable 15 meter	add $150

Specifications PDF

CAD Drawing PDF

Download 3D CAD
